Bosch Performance injector 1500cc
Bosch
Reviews
Bosch Performance Injector 1500cc
This newly developed and adequately tested Bosch injector is the largest Bosch injector designed for liquid fuel.
Name: Bosch 1500cc Performance
Part number: 0280158333 / 0280 158 333 / Bosch -333
Package: 1x
Connector: Bosch JPT EV1 Minitimer Jetronic

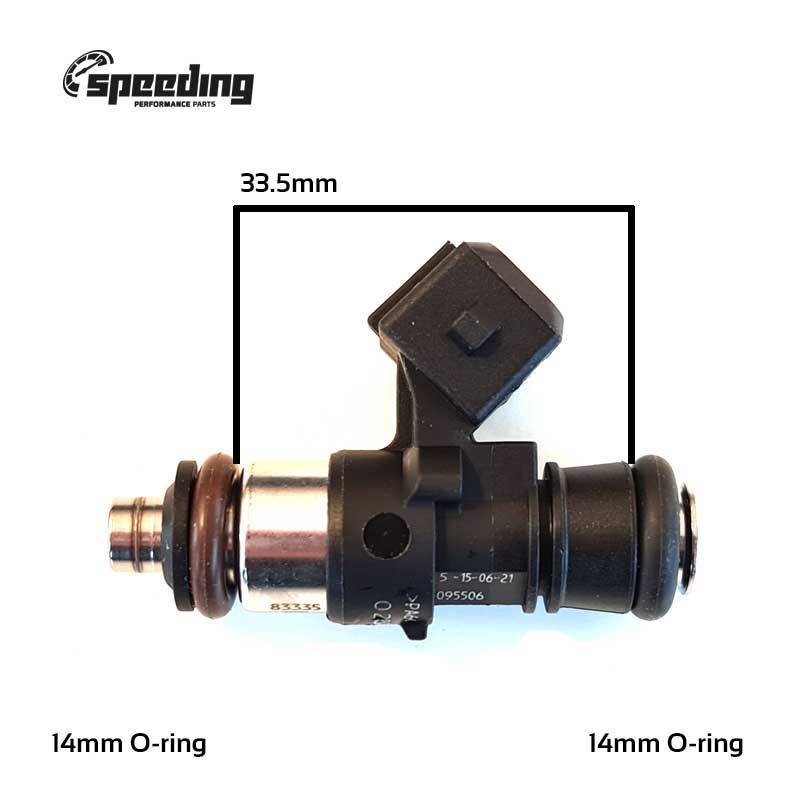

Length: 33,6mm - EV 14C (Compact) Use top adapter long to get 60,65mm EV 14L (Long)
Injector tip: 11mm
O-ring top: 14mm Viton
O-ring bottom: 14mm Viton
Body diameter: 16mm
Impedance: 8,5 ohm
Spray pattern: Conical (30 degrees)
Spray angle: Neutral (0 degrees)
Max flow measured static in test environment
Static flow @ 3bar (43.5psi) = 1450 cc/min
Static flow @ 4bar = 1690 cc/min
Static flow @ 5bar = 1900 cc/min
Please note that test environment versus practical use can vary widely depending on peripheral equipment and other technical factors. However, this is excellent information on what to expect from the injectors and essential information when choosing other components in the fuel system, such as fuel pump, fuel pressure regulator, and fuel filter.
Engine power Turbo
Petrol 10% margin
1cyl - 197hp (197x1)
4cyl - 788hp (197x4)
5cyl - 985hp (197x5)
6cyl - 1182hp (197x6)
8cyl - 1576hp (197x8)
Ethanol 10% margin
1cyl - 171hp (171x1)
4cyl - 684hp (171x4)
5cyl - 855hp (171x5)
6cyl - 1026hp (171x6)
8cyl - 1368hp (171x8)
Engine power N/A
Petrol 10% margin
1cyl - 257hp (257x1)
4cyl - 1028hp (257x4)
5cyl - 1285hp (257x5)
6cyl - 1542hp (257x6)
8cyl - 2056hp (257x8)
Ethanol 10% margin
1cyl - 214hp (214x1)
4cyl - 856hp (214x4)
5cyl - 1070hp (214x5)
6cyl - 1284hp (214x6)
8cyl - 1712hp (214x8)
Flow matching
These injectors are supplied with basic flow matching and checking that there is no leakage. The basic flow matching has acceptable tolerances within 3% variation over a dynamic register but documentation and other data are not included in this option.
When you choose that we do a real flow matching, we match the injectors even more accurately within 1% variation and documentation is included for the injectors and the flow matching. We also check more parameters such as spray pattern, resistance, etc.
----------------
Guides & Info
ej testkörda ännu, men den hjälp man får om man slår en signal till grabbarna på speeding, ovärdelig om man inte vet exakt vad man ska ha.
Dessa har fungerat riktigt bra för mig på etanol. Bra spridare över hela registret och även tomgång/låglast
Alla har rekommenderat denna spridaren så jag var tvungen att köpa den. Det stog mellan denna och Bosch 2200cc eller en 1300cc med uppställt grundbränsletryck.
