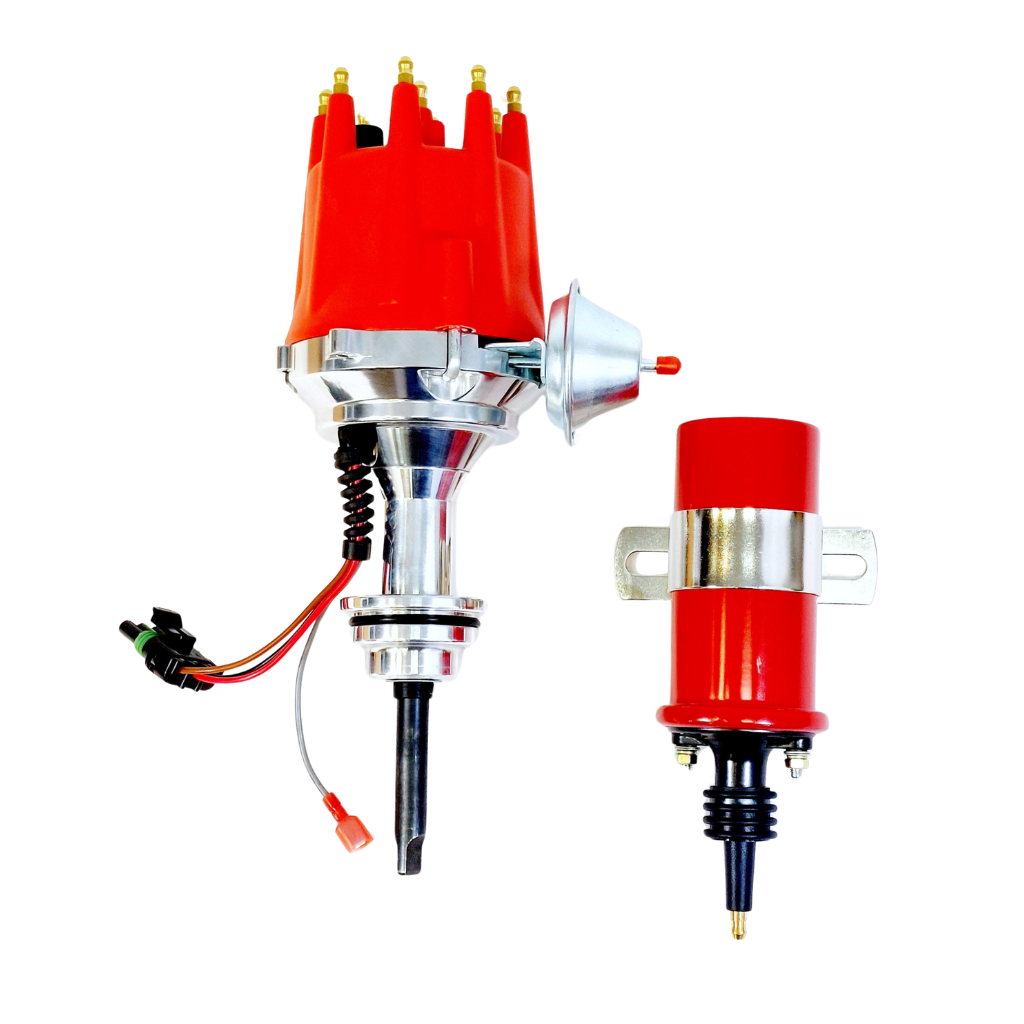

Distributor Chrysler SB ready to run
U-3
Reviews
Help others choose right. Be the first to write a review!
Write a reviewDistributor Chrysler SB ready to run
This is a finished "Ready to run" distributor with built-in final stage/ignition stage, so no CDI box is needed!
Technical info:
Classic style ignition coil with 45,000 volts
Primary resistance – 0.700 ohms (Ω)
Secondary Resistance – 4,700 ohms (Ω)
Maximum Volts – 45,000 Volts (V)
Spark duration - 350 microseconds (µS)
Peak current – 140 milliamps (mA)
Gear ratio – 100:1
Inductance – 8.0 (mH)
ATTENTION!
Needs to be mounted vertically due to oil filling.
Fits engine:
Chrysler small block 279, 318, 340, 360
Measure:
44 × 24 × 19 cm
Also included in kit:
3 sets of springs with which you adjust the ignition curve.
Locking to the vacuum regulation to remove the vacuum bell.
Cap to keep ignition wires in place.
Extra spacers and o-rings.
----------------
Guides & Info
| Bilmärke | Chrysler |
