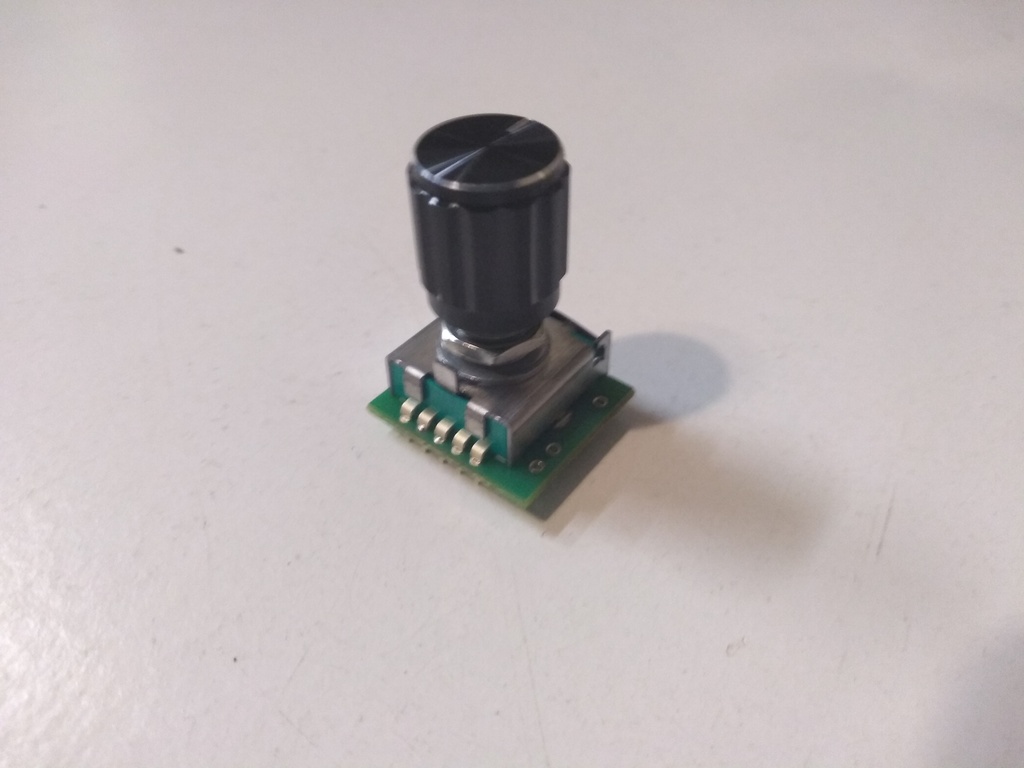

ECU Master Rotary Switch
The 8-step ECU Master Rotary switch can be used to control various ECU functions such as Traction Control and Boost Control settings.

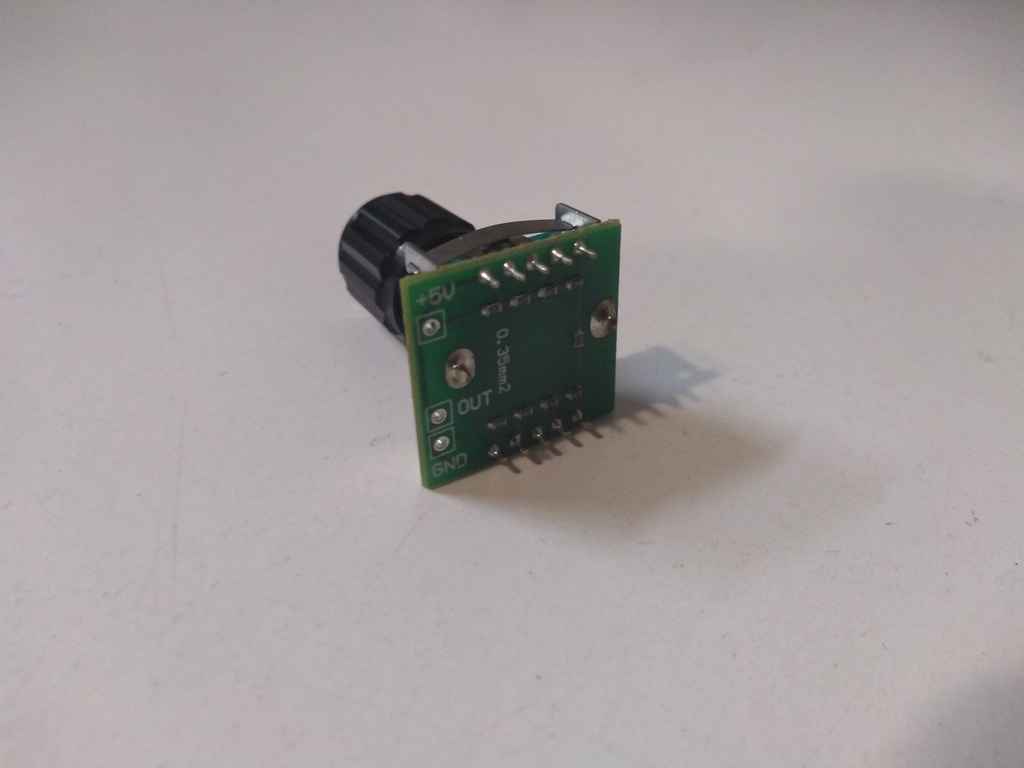

Installation is simple: connect 5V power, sensor ground, and output signal.
The rotary switches can be connected to any available analog input on the EMU, EMU Black, or PMU16.
Reviews
Help others choose right. Be the first to write a review!
Write a reviewECU Master Rotary Switch
The 8-step ECU Master Rotary switch can be used to control various ECU functions such as Traction Control and Boost Control settings.
Installation is simple: connect 5V power, sensor ground, and output signal. The rotary switches can be connected to any available analog input on the EMU, EMU Black, or PMU16.
Dimensions:
- Mounting hole size: 8.8 mm to 9 mm (8.8 mm thread outer diameter)
- Position pins for fixed mounting position: 3 mm (W) x 0.60 mm (Thickness)
- Distance from mounting hole center to position pin: ~8 mm
- Board size: 22.75 mm x 21.15 mm
- Depth from mounting surface to back of the board: 12 mm (including space for solder pins)
- Knob: 16 mm (L) x 15 mm (Outer diameter)
- Total height from solder pins on the back of the board to the top of the knob: ~32 mm
----------------
