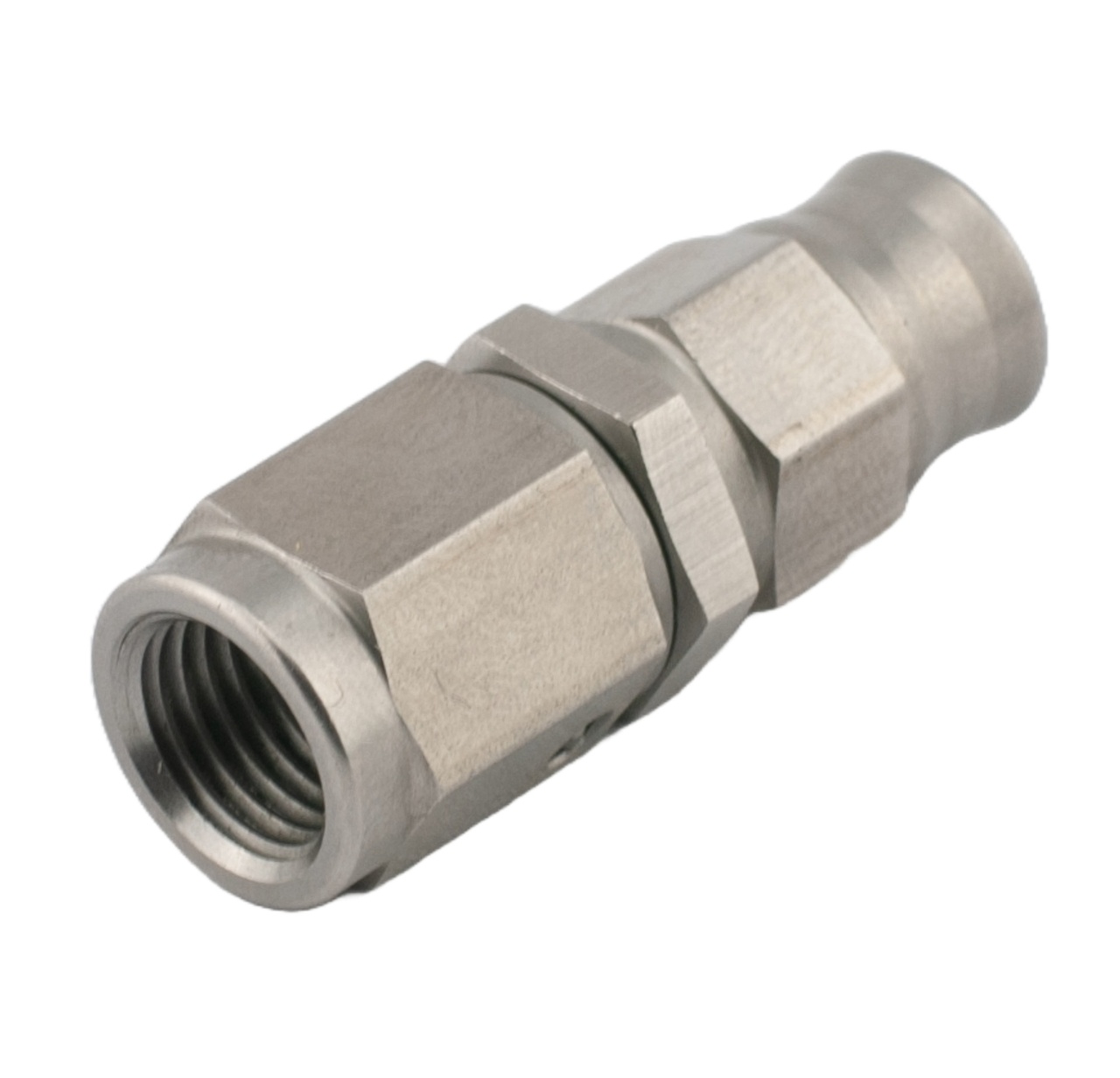

AN3 Brake fitting for AN3 hose Stainless Steel
SPD Hydraulics
Reviews
SPD female AN brake fitting for AN3 brake hose.
Slip the nut over the brake hose and press the cutting ring over the PTFE hose (inside the outer braid) until it reaches the stop. Then push the AN3 swivel fitting through to the cutting ring and in to the PTFE hose. Now screw the nut on to the AN3 swivel fitting so the cutting ring expands to the PTFE hose. When this is done the application can be used with the rest of the AN3 brake system without leakage.
Nut, cutting ring and AN3 female swivel fitting is included. No special assembly tools needed.
If cutting ring is disassembled from PTFE brake hose it is consumed and the end of the hose need to be cut away for new leak free mounting. Extra cutting rings are available seperately.
AN3 female thread swivel that spins around its own axis for easy installation.
AN brake fittings of the highest quality with good warranties.
----------------
Guides & Info
Jag har alltid använt dessa PTFE kopplingar till bromssystemet på banracingbilen. Sjukt smidigt + att man får exakta längder.
