Link RACEPAD - Steering Wheel CAN Keypad
RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level.
With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.
Box Contents
1 x RACEPAD (steering wheel is not included)
1 x Mounting Bracket
1 x DTM4 Mating Connector Kit
1 x Molex Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually.
Reviews
Help others choose right. Be the first to write a review!
Write a reviewLink RACEPAD - Steering Wheel CAN Keypad
RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level.
With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.
Box Contents
- 1 x RACEPAD (steering wheel is not included)
- 1 x Mounting Bracket
- 1 x DTM4 Mating Connector Kit
- 1 x Molex Mating Connector Kit
- 1 x Link Sticker
- 1 x Keypad Button Insert – Link Logo
Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
Features
- 8 Backlit Buttons and 4 Rotary Knobs
- 4 Analogue Inputs for additional Sensors or Switches
- CAN Configurable with G4X/G5 PC Link – Change button
- LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched
and toggle - 8 Blue LED Lights on Rotary Encoders while all 8
- Pushbuttons Buttons have customisable RGB LED Rings
- CAN Bus Communication back to Engine Management System
- Compatible with all G4X and G5 ECUs
- Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical
- 12 Fixed LEDs in centre can be used for configurable feedback – RPM etc.

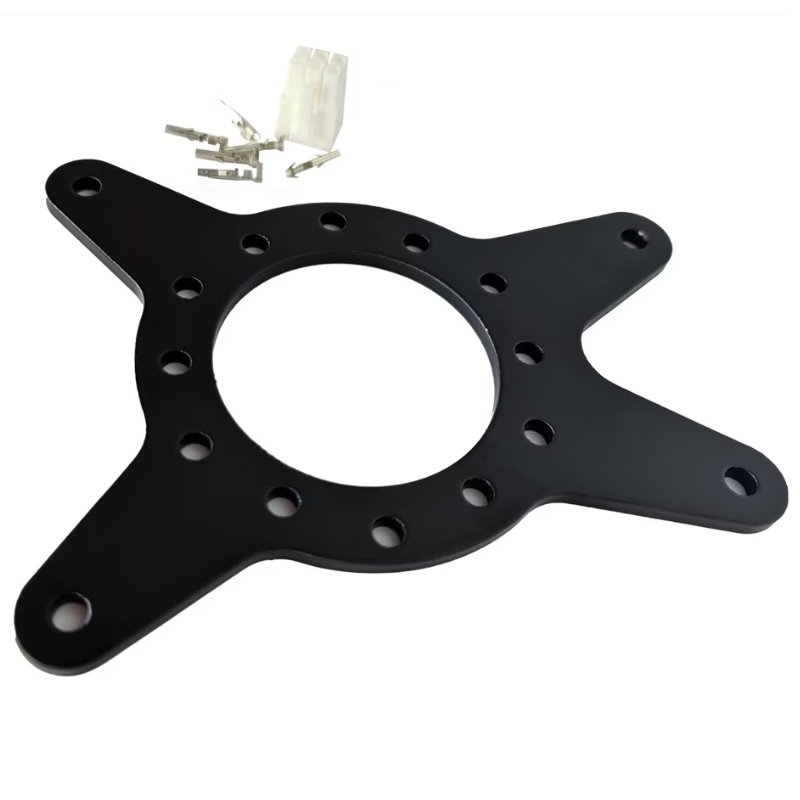

- Includes mounting plate adapter to support common aftermarket steering wheel bolt patterns including Sparco, QSP, MOMO (6x70mm) and Nardi (6x74 mm)
- DTM4 Connector for CAN and Power, Molex Connector for Analog Inputs
Specifications
- Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
- Switch Life - 3 million operations
- Default Baud Rate - 1000kbit/s
- Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi
- Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
- UV Protection - UVB 400 hours
- Salt Spray Per - ASTMB117
- Weight (Racepad) - 110grams
- Dimensions (From front w x h) - 197 x 180mm
- Thickness - 36.2mm excluding knob height
----------------
