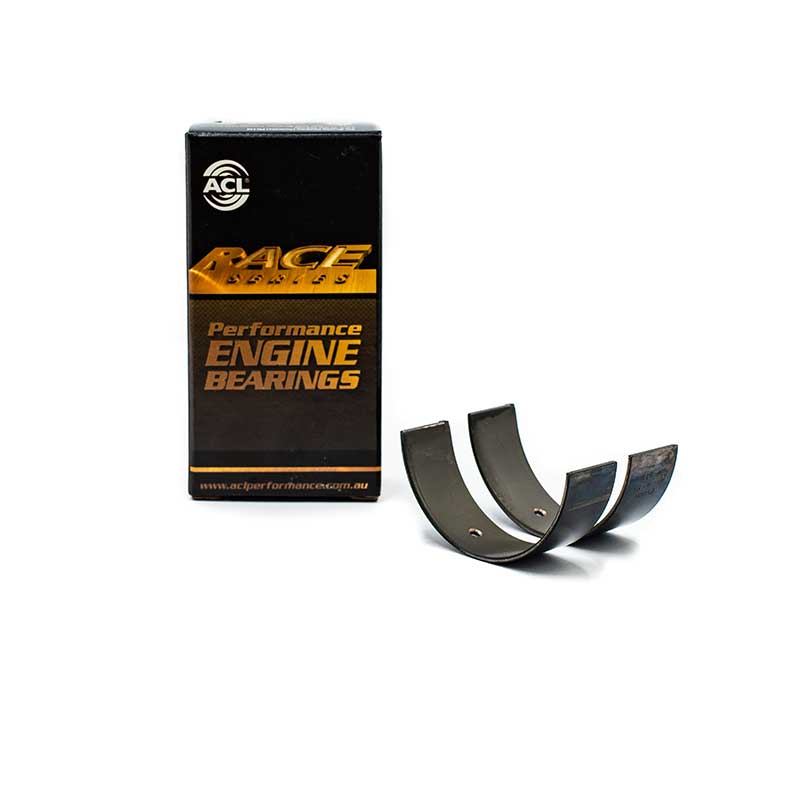

ACL Race Conrod bearings Shell VAG 1.4L TSI/2L TFSI(CCTA)/2.5LTTRS (.25)
ACL
Reviews
Help others choose right. Be the first to write a review!
Write a reviewACL bearings are used for tuning and engine upgrades where you want better quality with higher bearing capacity than normal standard bearings.
Improvements of material, dynamic thickness, heat conduction, oil grooves and oil distribution are some of the points that make ACL one of the leading bearing manufacturers.
Bearing data
Part number: 1B5562H
Bearing size: .25
Bearing half type: Identical halves
Bearing material: F781
Technical data (mm)
Max overall length: 17.4
Max shaft size: 47.778
Max tunnel size: 50.619
Max vertical oil clearance: 0.069
Max wall at crown: 1.405
Min shaft size: 47.758
Min tunnel size: 50.6
Min vertical oil clearance: 0.014
Technical data (in)
Max overall length: 0.685
Max shaft size: 1.881
Max tunnel size: 1.9929
Max vertical oil clearance: 0.0027
Max wall at crown: 0.0553
Min shaft size: 1.8802
Min tunnel size: 1.9921
Min vertical oil clearance: 0.0006
Engine code
CEPA / CEPB / CTSA / CZGA / CZGB / DAZA / DNWA
Application
Audi CEPA (EA855) 2480cc Inline5 DOHC 4v Turbo
Audi CEPB (EA855) 2480cc Inline5 DOHC 4v Turbo
Audi CTSA (EA855) 2480cc Inline5 DOHC 4v Turbo
Audi CZGA (EA855) 2480cc Inline5 DOHC 4v Turbo
Audi CZGB (EA855) 2480cc Inline5 DOHC 4v Turbo
Audi DAZA (EA855 Evo) 2480cc Inline5 DOHC 4v Turbo
Audi DNWA (EA855 Evo) 2480cc Inline5 DOHC 4v Turbo
----------------
