PMC Adapter Kit Toyota JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)
PMC Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewPMC Motorsport adapter kit Toyota JZ 1JZ 2JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 1G-FE (first gen) - 240mm / 9.45"
Engine - Toyota JZ 1JZ 2JZ
Gearbox - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)
Clutch Set
Set with Clutch - No
Flywheel Type - Single Disc
Recommended clutch pressure plate - Sachs 3000 950 742
Clutch disc required - Dedicated to your gearbox - 240mm / 9.45"
Clutch fork required - dedicated to your gearbox
Release bearing required - Dedicated to your gearbox
Starter required - Toyota JZ (OE) - Not included
Flexplate / ring gear required - Toyota OEM 32101-30090 | 32101-22050
ADDITIONAL INFORMATION
Flywheel weight - 5.60 kg / 12.35 lb
Adapter Kit Type - Daily
Gearbox adapter thickness - 30mm / 1.18"
Replaceable friction surface - Yes

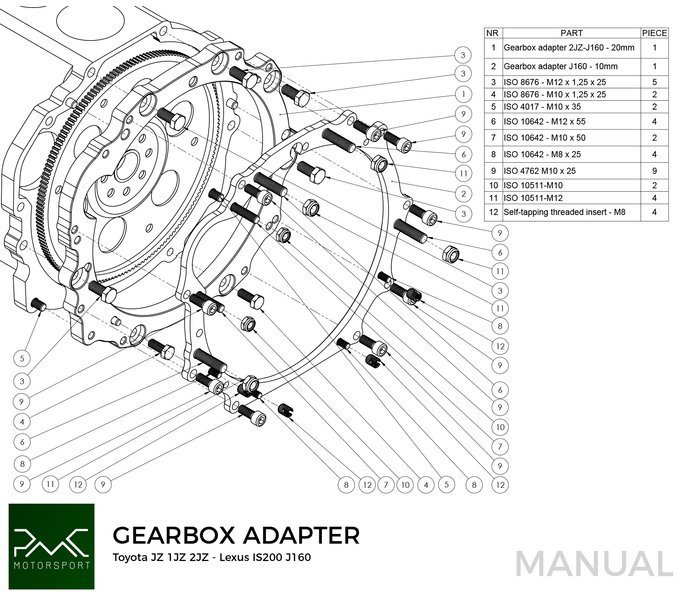

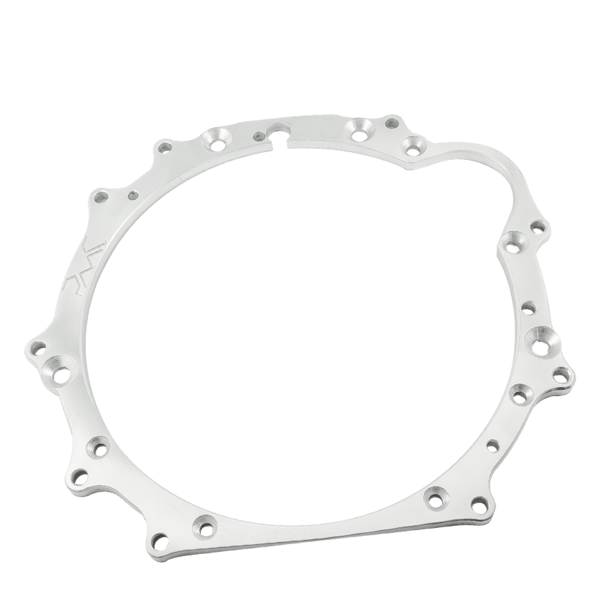

Set includes - Aluminium gearbox adapter
Set includes - Gearbox adapter bolts
Set includes - Custom Flywheel
Set includes - Crankshaft bolts kit
Set includes - Clutch cover - pressure plate bolts kit
Product sales codes included - F0J160-JZ (2387)
Product sales codes included - K0J160-JZ (2462)
Max torque - Adapter Kit ONLY 240mm (single disc)
----------------
Guides & Info
| Bilmärke | Toyota |
| Engine code | 1JZ |
| Engine code | 2JZ |
Be first to write a review about this product!
Your review:
To send a review, you must be logged in.
Parts included in kit:
PMC Flywheel Toyota JZ - Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)
Toyota Altezza / Lexus IS200 J160 Aisin AZ6 (first gen.)
3-6 days
