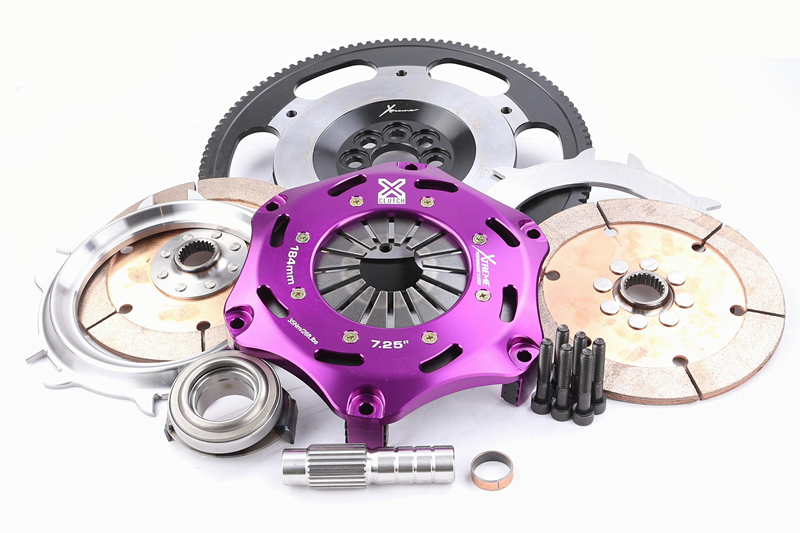

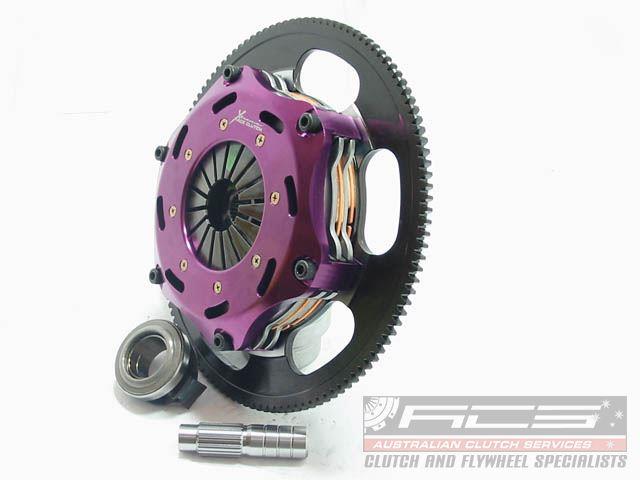

HONDA CIVIC VII 2.0 Type-R (EP3) - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
Xtreme Clutch
K20A2, K20A5, K20Z4, K20Z1
Reviews
Help others choose right. Be the first to write a review!
Write a reviewDesigned for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.
The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
|
Replacement Parts
|
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
Fits the following models:
- HONDA/CIVIC VII/2.0 Type-R (EP3)/2001.09-2005.09/K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)
- HONDA/CIVIC VIII/2.0 i-VTEC Type R (FD2)/2007.08-2010.09/K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)
- HONDA/CIVIC VIII/2.0 i-VTEC Type R (FN2)/2010.03-2010.12/K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12)
- HONDA/CIVIC VIII/Type R (FN2)/2006.09-/K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 -)
- HONDA/INTEGRA/2.0 (DC5)/2004.10-/K20A2 1998 Petrol 147 kW 200 BHP (2004.10 -)
- HONDA/INTEGRA/2.0 16V Type-R (DC5)/2002.02-/K20Z1 1998 Petrol 162 kW 220 BHP (2002.02 -)
- HONDA/INTEGRA/2.0 Type-S/2004.10-2007.04/K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)
----------------
Guides & Info
| Newton meter | 1220 Nm |
| Bilmärke | Honda |
| Engine code | K20A2 |
| Engine code | K20A5 |
| Engine code | K20Z1 |
| Engine code | K20Z4 |
