HARDY DISC FOR BMW ZF TRANSMISSION Can be used with M90 driveshaft when installing a ZF transmission on a Volvo engine. Make sure to align the drivetrain properly to avoid vibrations. The material is Elathane 95A.
Installation tips for the Hardy disc:
1. Use 12.9 bolts if possible.
2. Tighten with the correct torque.
3. Ensure the driveshaft is aligned with the engine. NOTE!
4. Replace the engine and transmission mounts with solid/hard bushings.
5. Make sure to use washers on both sides of the bushings on the Hardy disc to prevent them from coming loose.
If these instructions are not followed, there is a high risk of imbalance or damage to the Hardy disc.
Width: 30mm

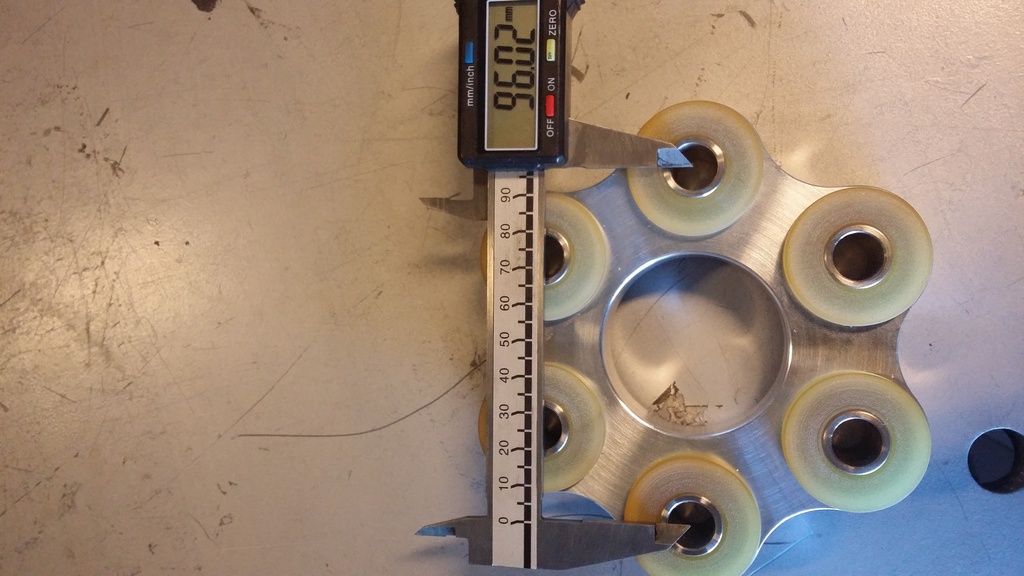

Center-to-center bolt holes across: 96mm
----------------
Guides & Info
Smidigt att köpa färdigt om man vill ha en stum hardyskiva. Men det är sjukt viktigt att lina motor / låda och klump med varandra! Annars kommer man slita på sakerna!
