Write a reviewHPR Tuning Adapter oil cooling 8HP and DCT gearbox
HPR Tuning oil adapter for 8HP and DCT is an oil adapter that has both good function and a nice design.
When the oil enters the banjo connection, the surface area increases up to 230%
This causes the oil to slow down as it changes direction, giving you the least possible resistance in a compact design.
Stress tested to 100 Bar without failure.
(20 times working pressure)
Fits oil hole in gearbox with CC dimensions: 37mm
DCT 14mm
8HP 17mm

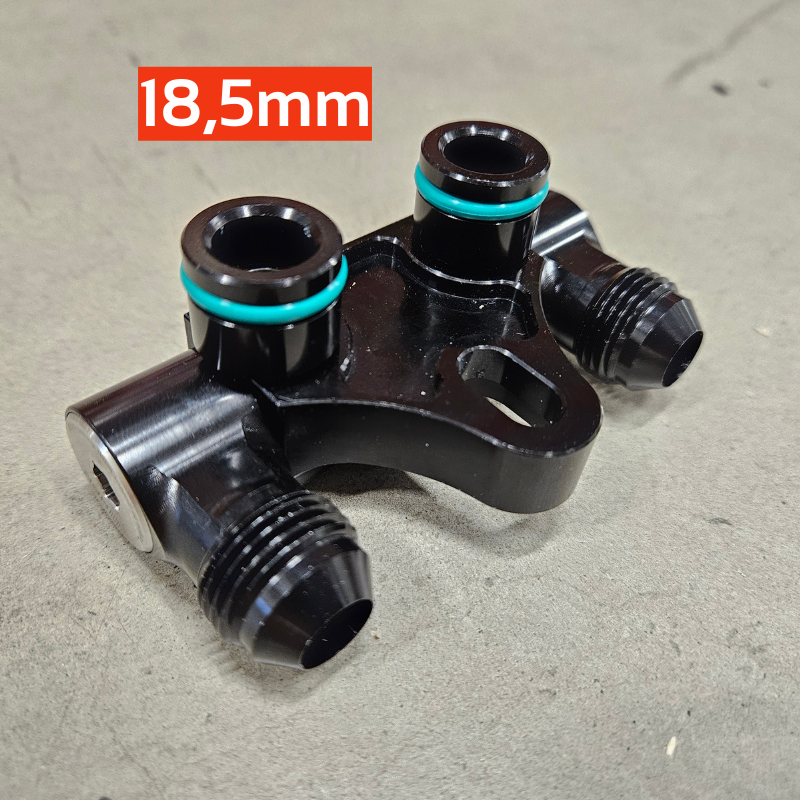

8HP 18,5mm (18mm)

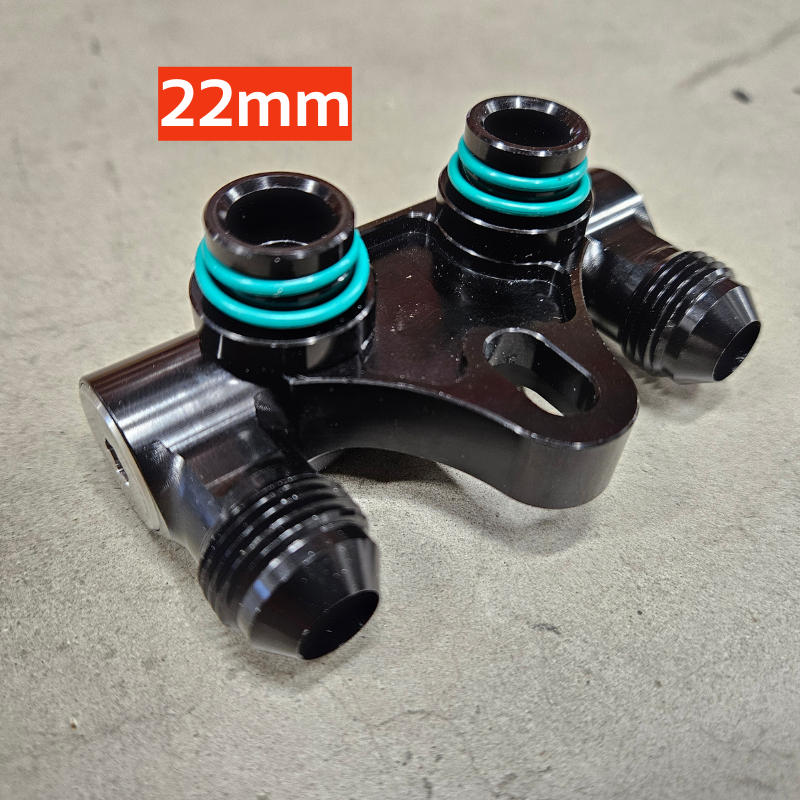

8HP Jaguar 22mm

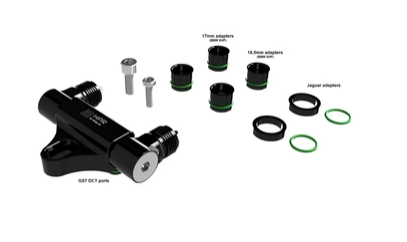

Parts included:
- 1x Adapter for oil cooling with AN8 swivel connections
- 2x GS7 DCT 14mm viton o-rings (Pre-installed)
- 2x 8HP small 17mm adapter with viton o-rings
- 2x 8HP large 18.5mm adapter with viton o-rings
- 2x 8HP 22mm (Jaguar) spacers with o-rings (for use with 17mm adapter)
- 1x M6 stainless steel short bolt
- 1x M6 stainless steel long bolt
- 1x M8 stainless bolt
- Installation instructions
NOTE
Does not fit the S65 DCT version (E-series V8).
----------------
