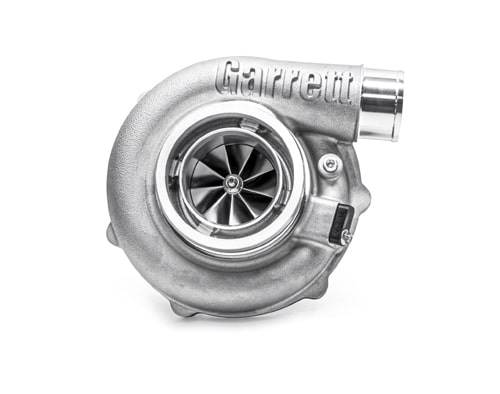

Garrett G35 900 Supercore
Garrett
550 - 900HP
Reviews
Help others choose right. Be the first to write a review!
Write a reviewGarrett G35 900 Supercore
G-Series G35-900 turbochargers from Garrett are compatible with 2.0L – 5.5L engine displacements and capable of producing up to 900 horsepower.
G35-900 Series turbochargers are smaller and outflow all comparable products on the market. Improved durability with better materials can withstand higher temperatures and better safety margins.
The Garrett G-Series G35-900 turbochargers deliver more power and durability in a smaller frame than ever before.
Horsepower: 550 - 900HP
Displacement: 2.0 - 5.5L
Compressor
Exducer: 76mm
Inducer: 62mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.72
Max Flow: 82 lb/min
Max Recommended Speed: 145000 RPM
Compressor Housing Connections
Inlet: 4.0″ Hose Coupler
Outlet: 2.5″ Hose Coupler
Turbine
Exducer: 62mm
Inducer: 68mm
Trim: 84
Material: Mar-M
Included parts:
1x CHRA (Core)
1x Compressor cover incl. mounting kit
1x Oil inlet AN4 (Oil restrictor)
2x Water fittings AN6
----------------
