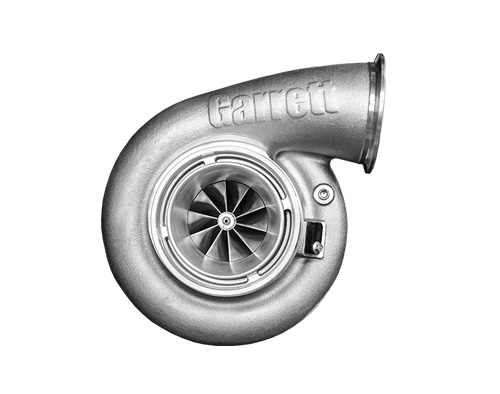

Garrett G42 1450 Supercore
Garrett
525 - 1450HP
Reviews
Help others choose right. Be the first to write a review!
Write a reviewGarrett G42 1450 Supercore
G-Series G42-1450 turbochargers from Garrett are compatible with 2.0L – 8.0L engine displacements and capable of producing up to 1450 horsepower.
G42-1450 Series turbochargers are smaller and outflow all comparable products on the market. Improved durability with better materials can withstand higher temperatures and better safety margins.
The Garrett G-Series G42-1450 turbochargers deliver more power and durability in a smaller frame than ever before.
Horsepower: 525 - 1450HP
Displacement: 2.0 - 8.0L
Compressor
Exducer: 98mm
Inducer: 79mm
Trim: 65
Material: Forged Billet Aluminum Alloy
A/R: 0.85
Max Flow: 132 lb/min
Max Recommended Speed: 114000 RPM
Compressor Housing Connections
Inlet: 4.0″ Hose Coupler
Outlet: 107mm V-band
Turbine
Exducer: 75mm
Inducer: 82mm
Trim: 84
Material: Mar-M
Included parts:
1x CHRA (Core)
1x Compressor cover incl. mounting kit
1x Oil inlet AN4 (Oil restrictor)
2x Water fittings AN6
----------------
