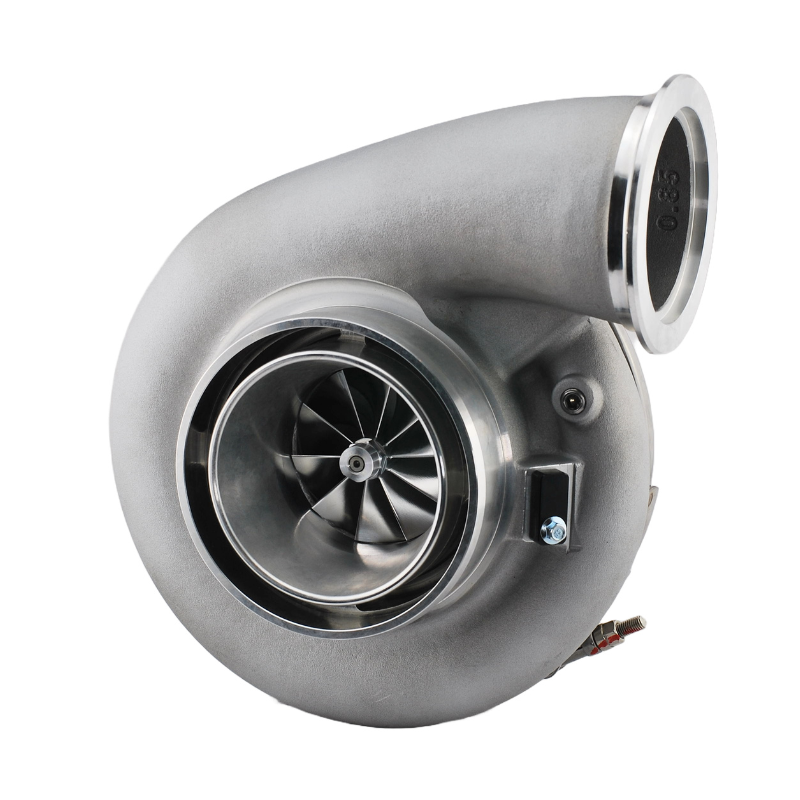

Hurricane 7375-1200 Turbo Supercore
Hurricane Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewHurricane 7375-1200 Turbo Supercore
Hurricane 7375-1200 is a top-of-the-line ball-bearing turbo, perfect for 2.0-7.0 liter engines with up to 1200 horsepower on gasoline. Suitable for all types of racing and custom builds.
Hurricane 7375-1200 Supercore suits 2,0 to 7,0-liter engines and produces 475-1200hp on Gasoline, -1300hp on Ethanol and -800hp on Diesel. Smaller engines (2,0-4,5L) will get fast spool times with the 75mm turbine, while bigger engines (4,5-7,0L) will get even faster spool times.
Turbine housing.
The above-spool times can be adjusted with the turbine housing size, where a smaller one (A/R 0,83) improves the spool further, and a bigger one (A/R 1,21) increases peak power.
Compressor
A/R 0.85
73.0/91.0mm
Clamp type: 200mm V-band (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 5" / 127mm
Outlet: 107mm V-band
CHRA
Bearing: Dual ceramic ball bearings
Oil inlet: 38mm CC flange
Oil outlet: 51mm CC flange
Bolt thread: M8x1,25mm
Return port ID: 18mm
Water ports: M14x1,5
2x water ports
2x on each side of the chra
Compressor side clamp type: 200mm V-band
Turbine side clamp type: 114mm V-band
Turbine
82/75.25mm
Clamp type: 114mm V-band
----------------
Guides & Info
Be first to write a review about this product!
Your review:
To send a review, you must be logged in.
Oil inlet
Oil drain
Compressor outlet
Turbo compressor hose adapter Garrett / Hurricane 3,5"
Garrett G42 up / Hurricane 73-79mm
In stock
Water connection
Exhaust outlet
Exhaust inlet
Turbinehousing
