Hurricane 7975-1450 A/R 1.01 T4 Turbo
Hurricane Motorsport
Reviews
Help others choose right. Be the first to write a review!
Write a reviewHurricane 7975-1450 A/R 1.01 T4 Turbo

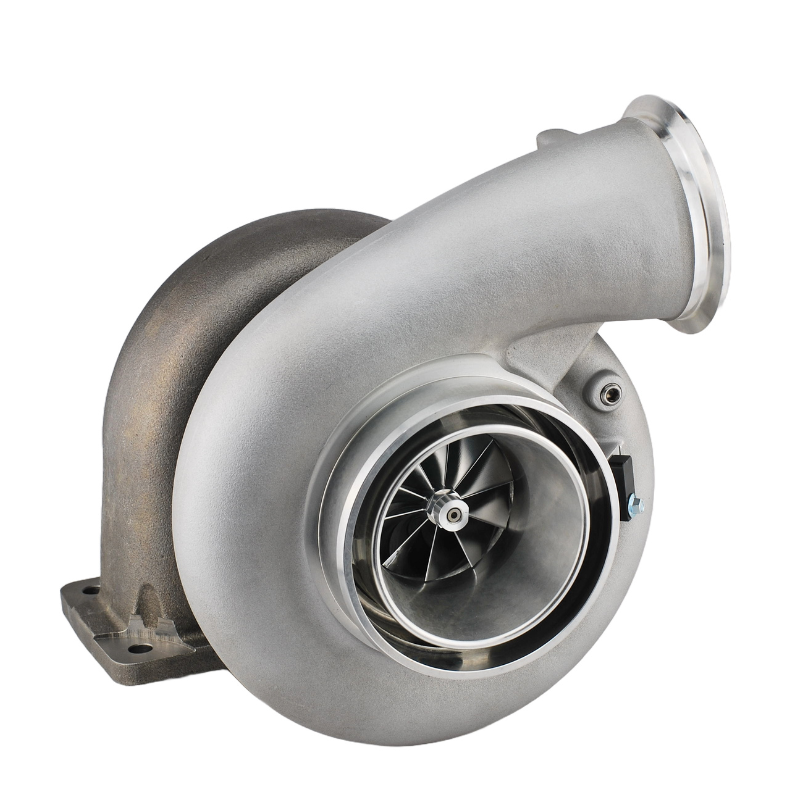

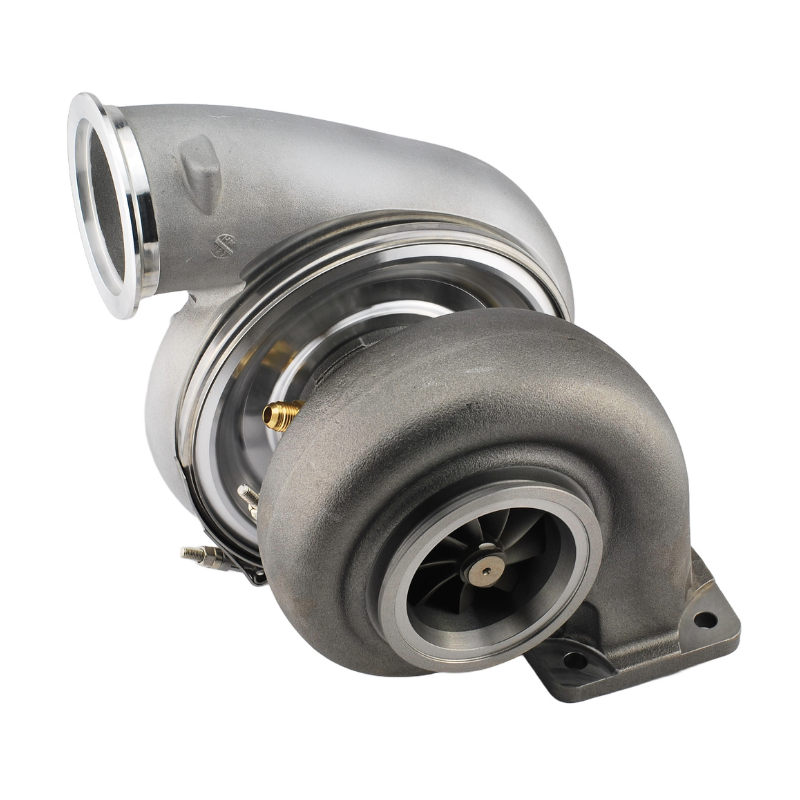

Hurricane 7975-1450 A/R 1.01 T4 ball-bearing top-of-the-line Turbocharger is perfect for Street use, Track racing, Drifting and Drag racing up to 1450hp with a combination of fast spool and high peak power.
Hurricane 7975-1450 A/R 1.01 T4 Turbo suits 2,0 to 8,0-liter engines and produces 525-1450hp on Gasoline, -1550hp on Ethanol or -950hp on Diesel. Smaller engines (2,0-5,0L) will get fast spool times with the 75mm turbine, while bigger engines (5,0-8,0L) will get even faster spool times. The A/R 1,01 turbine housing gets you a combination of fast spool and high peak power.
Compressor
A/R 0.85
79/98mm
Clamp type: 200mm V-band (included)
Anti-surge: Yes
Speed sensor port: Yes
Vacuum port: 1/8 -27 NPT
Inlet hose diameter: 5" / 127mm
Outlet: 107mm V-band
CHRA
Bearing: Dual ceramic ball bearings
Oil inlet: 38mm CC flange
Oil outlet: 51mm CC flange
Bolt thread: M8x1,25mm
Return port ID: 18mm
Water ports: M14x1,5
2x water ports
2x on each side of the chra
Compressor side clamp type: 200mm V-band
Turbine side clamp type: 114mm V-band
Turbine
82/75.25mm
Turbine Wheel fit: 82/75mm
A/R: 1,01
Inlet: T4 82x69mm (Singel entry)
Outlet: 109mm V-band
CHRA connection: 114mm V-band
Wastegate: No
Material: SiMo Controlled Cast iron
Temperature: -750 degrees (1382F) MAX: 800°C (1472°F)
Rotation: Standard
----------------
