Walbro GST535
Walbro
Reviews
Help others choose right. Be the first to write a review!
Write a reviewWalbro GST535 - F90000295
Outperforms all current market in-tank fuel pumps
Designed for engines with more than 900 HP
Award-winning OE technology
High-pressure, high-flow performance OEM technology designed and developed for E85 Ethanol
Dual channel turbine design for maximum efficiency under high-pressure and high-temperature applications
Made in USA by TI Automotive (parent company of Walbro)
Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

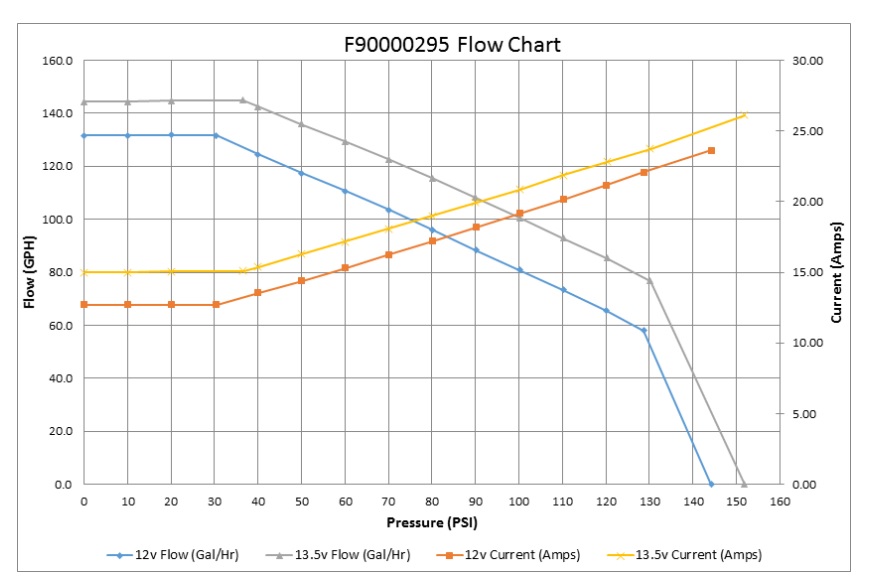

Flow Rate: 535LPH at 40psi
Test Voltage: 13.5 Volts
Industry Tag: Walbro 535
Note: Pump does NOT have a check valve
----------------
